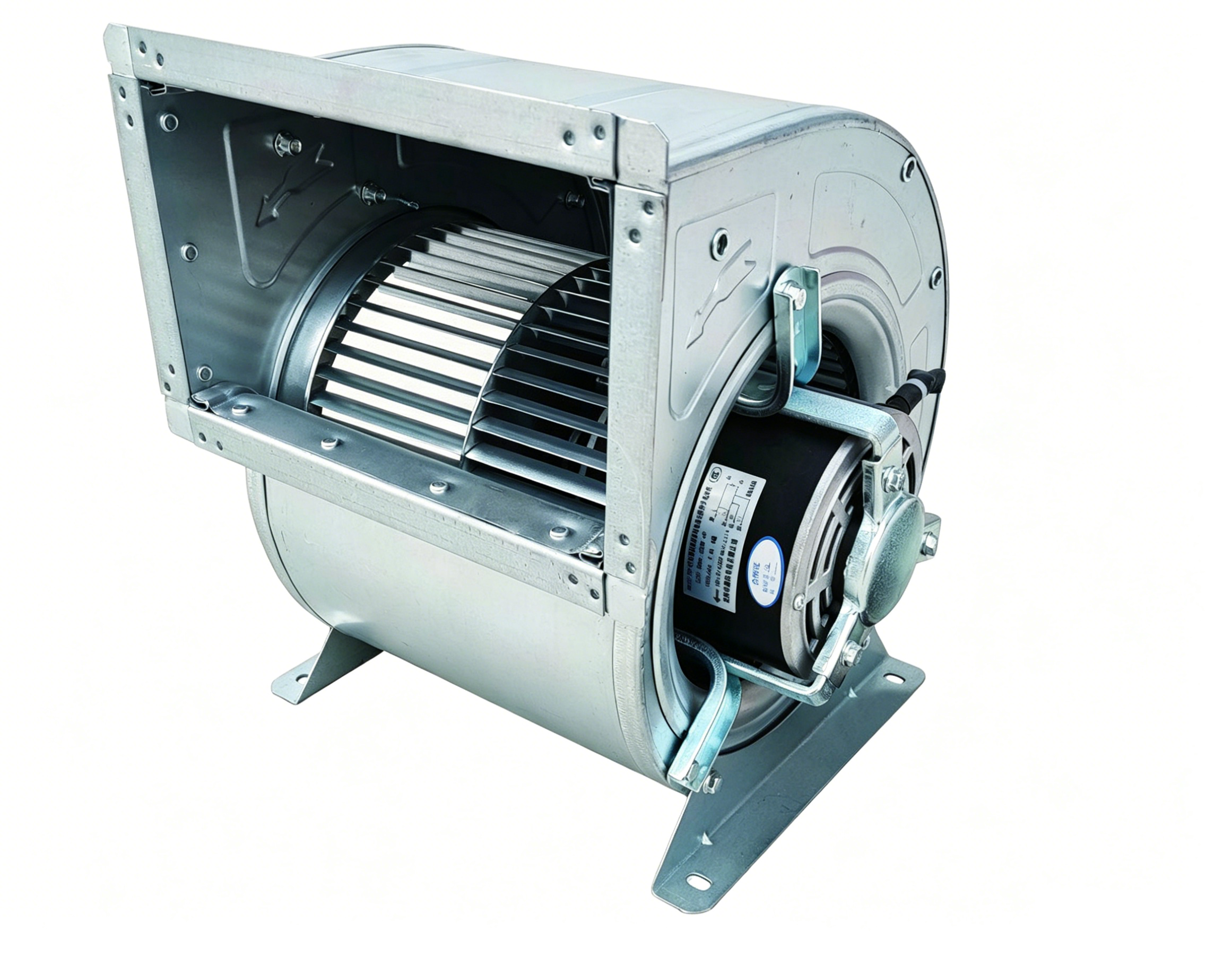

SLT direct-drive fan
- Three speed
- Air outlet angle, 0°, 90°, 180°(optional）
- 220v/1ph or 380v/3ph
- Airflow from 200m³/h to 4000 m³/h, pressure from 150pa to 600pa
Description
- The RLT series centrifugal fan is equipped with a three-speed vibration-reducing motor, allowing the motor speed to be adjusted in three steps. Users can switch between speeds according to airflow requirements, enabling precise control of air volume.
- The discharge direction offers multiple installation bases at 0°, 90°, and 180°, providing users with flexible options for adjustment.
- The airflow range spans from 200 m³/h to 4000 m³/h, with a pressure range of 150 Pa to 600 Pa.
- The fan is available with single-phase 220V or three-phase 380V power supply, and custom models with different voltages and frequencies can be manufactured according to customer requirements.
Note:
- The working environment of the fan is as follows: the altitude should not exceed 1000 meters, the ambient temperature should be no lower than -25°C and no higher than 40°C, and the relative humidity should not exceed 90%.
- The medium conveyed by the fan is greenhouse air, which is non-corrosive, does not contain acidic, alkaline, flammable gas, and the dust particle content is no more than 150mg/m³.
