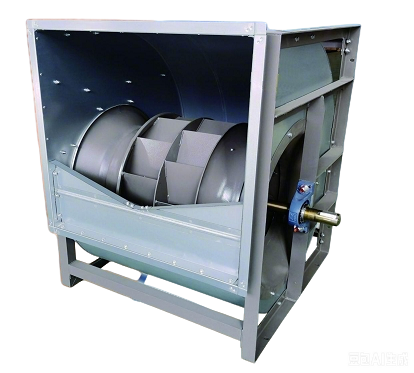

SLQ Belt-drive Fan
- Air outlet angle, 0°, 90°, 180°(optional）
- Fan size from 250mm to 1400mm
- Airflow from 1000m³/h to 120000 m³/h, pressure from 200pa to 2500pa
Description
- The SLQ series fans are driven by belts. By adjusting the size of the pulleys, the transmission ratio can be changed, making the fan speed more flexible. This series of fans feature a rearward straight plate type impeller, which is formed by welding steel plates and has high strength and high limit rotational speed. It can achieve a high pressure and can be used in systems with high resistance. It is an ideal matching product for various central air conditioning units, purification, ventilation and other equipment.
- The air outlet direction has multiple installation options such as 0°, 90°, and 180°. The motor can be installed at the rear, bottom, or side.
- The flow range is from 1000m³/h to 120000m³/h. The pressure range is from 200Pa to 2500Pa.
Note:
- The working environment of the fan is: the altitude does not exceed 1000 meters, the environmental temperature is not lower than -25 °C and not higher than 40°C, and the relative humidity does not exceed 90%.
- The medium conveyed by the fan is greenhouse air, which is non-corrosive, does not contain acidic, alkaline, flammable gas, and the dust particle content is no more than 150mg/m³.
